Carbide Hand Files

Outlast Steel Files 100:1 - The Ultimate in File Technology

Superior Performance, Unmatched Durability

Severance Carbide Hand Files provide 100 times the life of conventional steel files, making them the most economical choice for demanding applications.

Our carbide files feature precision-ground teeth on solid tungsten carbide blanks. Unlike coated files that lose their edge when the coating wears through, our files maintain their cutting ability throughout their extended life. When they do eventually dull, they can be resharpened multiple times.

100:1
Life vs. Steel Files
5+
Resharpenings Possible
Rc 90+
Hardness Rating
Carbide Hand Files - Outlast Steel Files 100:1
Key Advantages
  • 100x longer life
  • Cuts hardened steel
  • Resharpenable
  • Won't load or pinch
  • Multiple cut patterns
  • Multiple shapes

Application & Techniques

Carbide hand file being used for precision filing

Carbide files provide precise control for finishing operations.

Proper Filing Technique

  • Apply pressure on the forward stroke only
  • Lift the file slightly on the return stroke
  • Use full length strokes when possible
  • Keep the file clean with a file card
  • Match cut pattern to material hardness

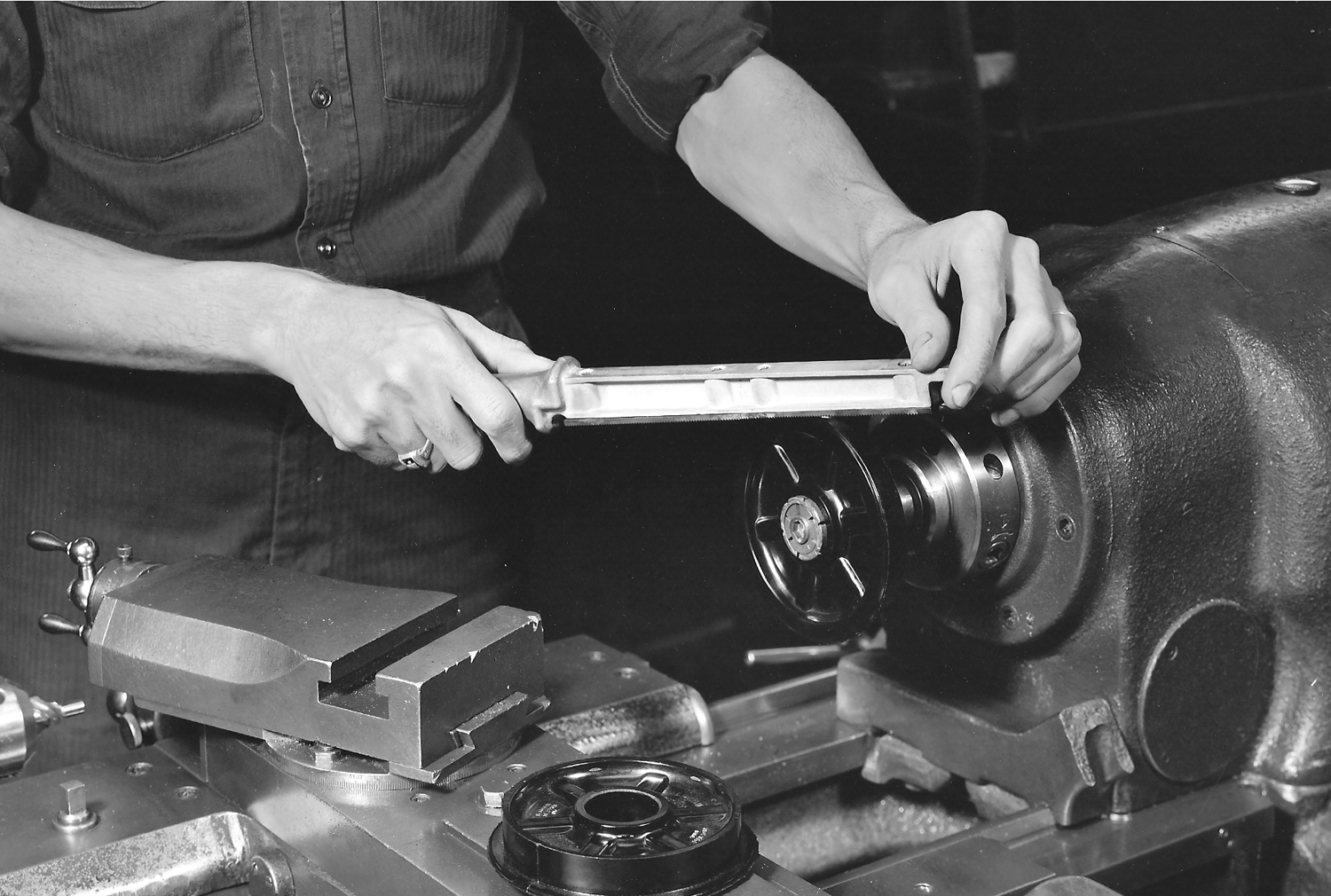

Hand file technique demonstration

Tooth Patterns

File tooth pattern diagram showing single and double cut patterns

Single-cut files have parallel teeth for smooth finishes. Double-cut files have cross-hatched teeth for faster material removal.

Tooth Densities

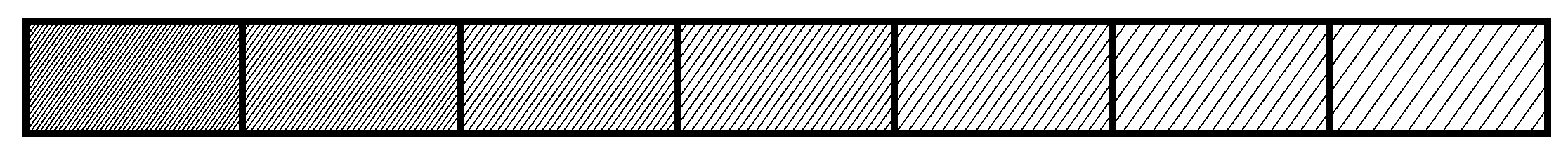

File tooth density comparison - fine, standard, and coarse

Choose fine cut for finishing, standard cut for general use, and coarse cut for rapid stock removal on soft materials.

File Materials

Carbide Files

Solid tungsten carbide. Excellent for steel, stainless, cast iron, and non-ferrous metals. Most economical for general use.

Best For: General purpose

Diamond Files

Diamond-coated surface for the hardest materials. Ideal for ceramics, glass, carbide, and hardened tool steel.

Best For: Hardest materials

CBN Files

Cubic Boron Nitride for ferrous materials. Excellent heat resistance. Ideal for hardened steel where diamond may react.

Best For: Hardened ferrous

HSS Files

High-speed steel for softer materials and general use. Most economical initial cost but shorter life than carbide.

Best For: Soft materials

Flat Hand Files - Carbide

Double-cut flat files for general filing and deburring. Available in standard, fine, and coarse cuts.

Length Width Thickness Cut Carbide EDP
4" 7/16" 5/32" Standard 05000
4" 7/16" 5/32" Fine 05001
4" 7/16" 5/32" Coarse 05002
6" 9/16" 3/16" Standard 05010
6" 9/16" 3/16" Fine 05011
6" 9/16" 3/16" Coarse 05012
8" 3/4" 1/4" Standard 05020
8" 3/4" 1/4" Fine 05021
8" 3/4" 1/4" Coarse 05022
10" 1" 5/16" Standard 05030

Half-Round Files - Carbide

Flat on one side, curved on the other. Versatile for both flat surfaces and concave work.

Length Width Cut Carbide EDP
4" 7/16" Standard 05100
4" 7/16" Fine 05101
6" 9/16" Standard 05110
6" 9/16" Fine 05111
8" 3/4" Standard 05120
8" 3/4" Fine 05121

Round Files

For enlarging and smoothing round holes and concave surfaces.

Length Diameter Cut EDP
4" 3/16" Standard 05200
6" 1/4" Standard 05210
8" 5/16" Standard 05220

Square Files

For slots, keyways, and square corners.

Length Size Cut EDP
4" 3/16" Standard 05300
6" 1/4" Standard 05310
8" 5/16" Standard 05320

Triangle (Three-Square) Files

60° corners for filing internal angles and clearing corners.

Length Side Width Cut Carbide EDP
4" 1/4" Standard 05400
6" 5/16" Standard 05410
8" 3/8" Standard 05420

Carbide File Sets

5-Piece Basic Set

Includes flat, half-round, round, square, and triangle files. 6" length, standard cut.

EDP: 05500

8-Piece Professional Set

Complete assortment including knife and warding files. 8" length, standard cut.

EDP: 05510

Needle File Set

12-piece set of miniature carbide files for precision work. 5-1/2" overall length.

EDP: 05520

Related Products

Midget Mills®

Power-driven rotary files for machine deburring.

View Midget Mills
Specialty Tools

Custom files and specialty shapes available.

View Specialty
Regrind Service

Resharpen your carbide files for extended life.

Learn More

Need a Custom File Shape or Size?

We can manufacture carbide files to your specifications.

Contact Engineering
